Mechanism Of Fan Dust Accumulation And Cleaning Solutions

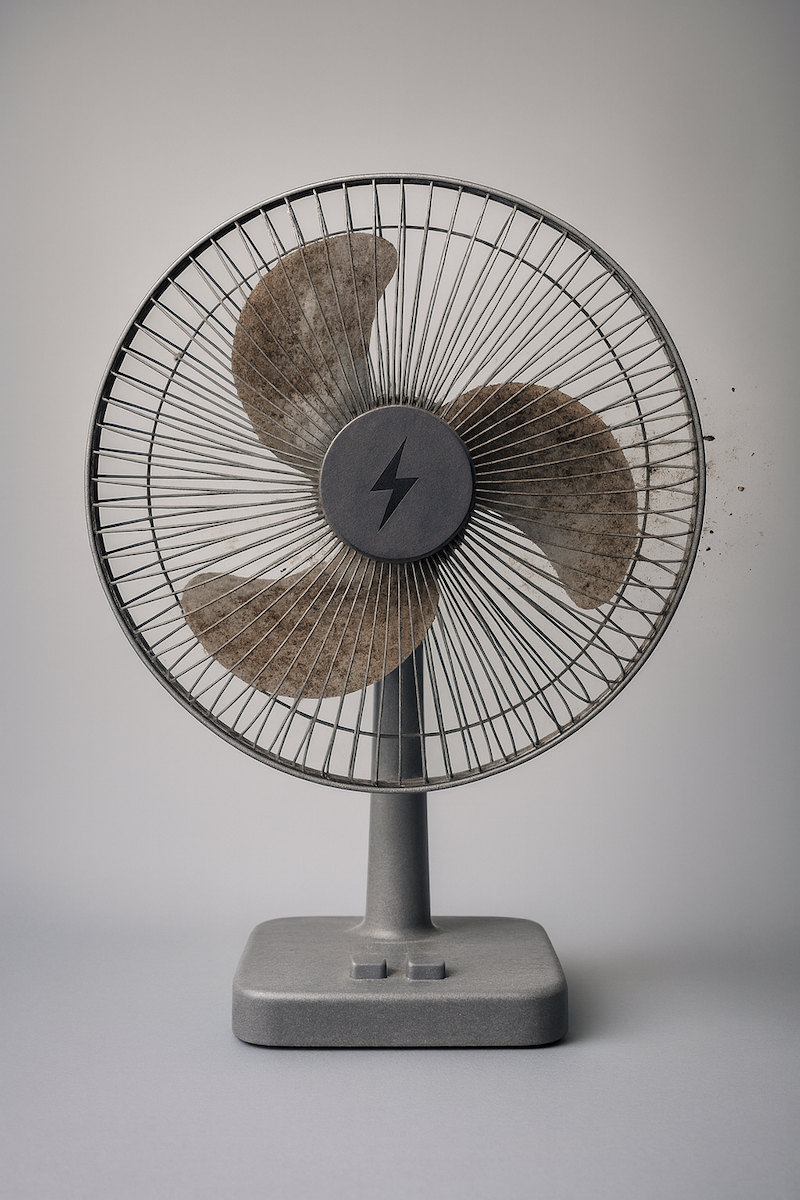

Dust on electric fan blades tends to accumulate on one side along the rotation direction, resulting from a combination of physical factors:
- Centrifugal force: As the blades rotate, dust particles are flung toward the outer edges. Due to inertia, they are more likely to remain on the “downwind side” along the rotation direction rather than being completely carried away by airflow.
- Airflow separation and turbulence: When the blades cut through the air, the airflow along the leading edge adheres closely and moves quickly, sweeping away dust; at the trailing edge (following the rotation direction), the airflow tends to detach, creating small vortices and low-pressure zones that trap dust, causing it to settle more easily.
- Electrostatic effects: High-speed rotation can charge the blades, and in regions of slow airflow within turbulence, dust is attracted by electrostatic forces, concentrating on the side along the rotation direction.
Based on these principles, the core of dust-removal design is to reduce dust adhesion and facilitate cleaning. Specific methods include:
- Physical barriers: Install fine dust screens or attach removable protective films to prevent dust from landing directly on the blades.
- Self-cleaning / anti-adhesion: Apply anti-stick coatings on blades or use rotational vibrations to make dust difficult to stay and allow it to fall off naturally.
- Electrostatic or air suction: Install ionizers or air duct suction devices near the blades to remove dust.
- Easy-to-disassemble design: Make blades and guards removable, and keep the casing smooth without dead corners to facilitate regular cleaning.
Most simple and effective combination: removable blades + guard combined with anti-stick coating—reduces dust adhesion and is easy to clean, without requiring complex structures or additional power.
